Single-image 3D reconstruction with cached flow-matching sampler

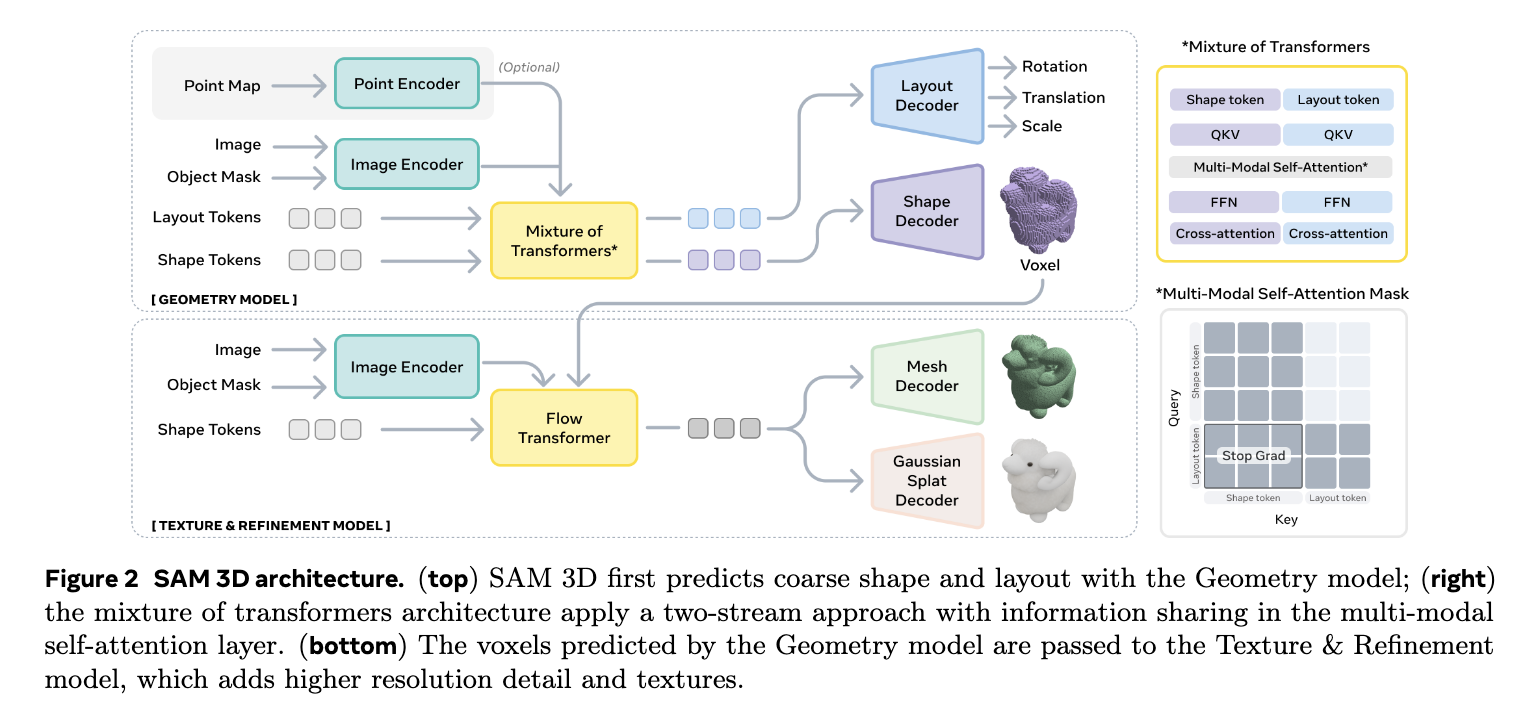

SAM 3D Objects reconstructs full 3D shape, texture, and layout from a single masked image. This fork adds HiCache to the slat-stage flow-matching sampler, skipping most backbone evaluations by forecasting the cached velocity with a scaled-Hermite polynomial.
mamba env create -f environments/default.yml mamba activate sam3d-objects # for pytorch/cuda dependencies export PIP_EXTRA_INDEX_URL="https://pypi.ngc.nvidia.com https://download.pytorch.org/whl/cu121" # install sam3d-objects and core dependencies pip install -e '.[dev]' pip install -e '.[p3d]' # pytorch3d dependency on pytorch is broken, this 2-step approach solves it # for inference export PIP_FIND_LINKS="https://nvidia-kaolin.s3.us-east-2.amazonaws.com/torch-2.5.1_cu121.html" pip install -e '.[inference]'
01
Evidence
| HiCache interval-3 speedup | 1.44× vs the uncached baseline at F1 1.000 (transferred slat-stage table, not stock validation) |
|---|---|
| HiCache i3/o2 corrected forecast | F1 = 1.000 (CD 0.0121) vs 0.0125 as-released |
| HiCache i5/o3 corrected forecast | F1 = 1.000 (CD 0.0126) vs 0.0127 as-released |
| HiCache i6/o3 forecast | F1 = 1.000 (CD 0.0128) under both sign conventions |
| Lossless interval range | interval-6 at F1@0.05 on this stage, speedups 1.3x to 1.5x |
| CPU contract tests | Four tests pass with no GPU or model weights |
02
Media

03
Install & verify
# CPU contract tests (no GPU or model weights) pytest tests/ # expect 4 passed # accel-module CPU unit self-test from the README python -m sam3d_objects.model.backbone.generator.flow_matching.accel
04
Limits
What this release does not claim (from the release notes):
- GPU speedup validation and weight-gated demo cells.
05
Family
| Base model | SAM 3D Objects, accelerated by the hicache-plus-plus forecast core |
|---|---|
| Same base | sam3d-plus-plus · fastsam3d-plus · fastsam3d-plus-plus |
| All 13 adapters | TRELLIS: faster-trellis, faster-trellis-plus-plus · TRELLIS.2: fast-trellis2, hermit-trellis2, hermit-trellis2-plus-plus · Hunyuan3D-2: hunyuan2-plus, hunyuan2-plus-plus · Hunyuan3D-2.1: hunyuan2.1-plus, hunyuan2.1-plus-plus · SAM: sam3d-plus, sam3d-plus-plus, fastsam3d-plus, fastsam3d-plus-plus |
| External | Paper arXiv:2511.16624 · Meta SAM 3D site |
